Design: AIM-9 Sidewinder

Fusion 360 CAD 3D Printing Tolerance Fitting

This side project started as a quick CAD exercise inspired by missile forms and ended up being especially satisfying because it worked the first time. No test-print spiral, no redesign loop, just a clean one-and-done build.

Rendered AIM-9 Sidewinder-inspired model. — The render sells the clean proportions and the satisfaction of a project that hit its tolerances without a long rework cycle.

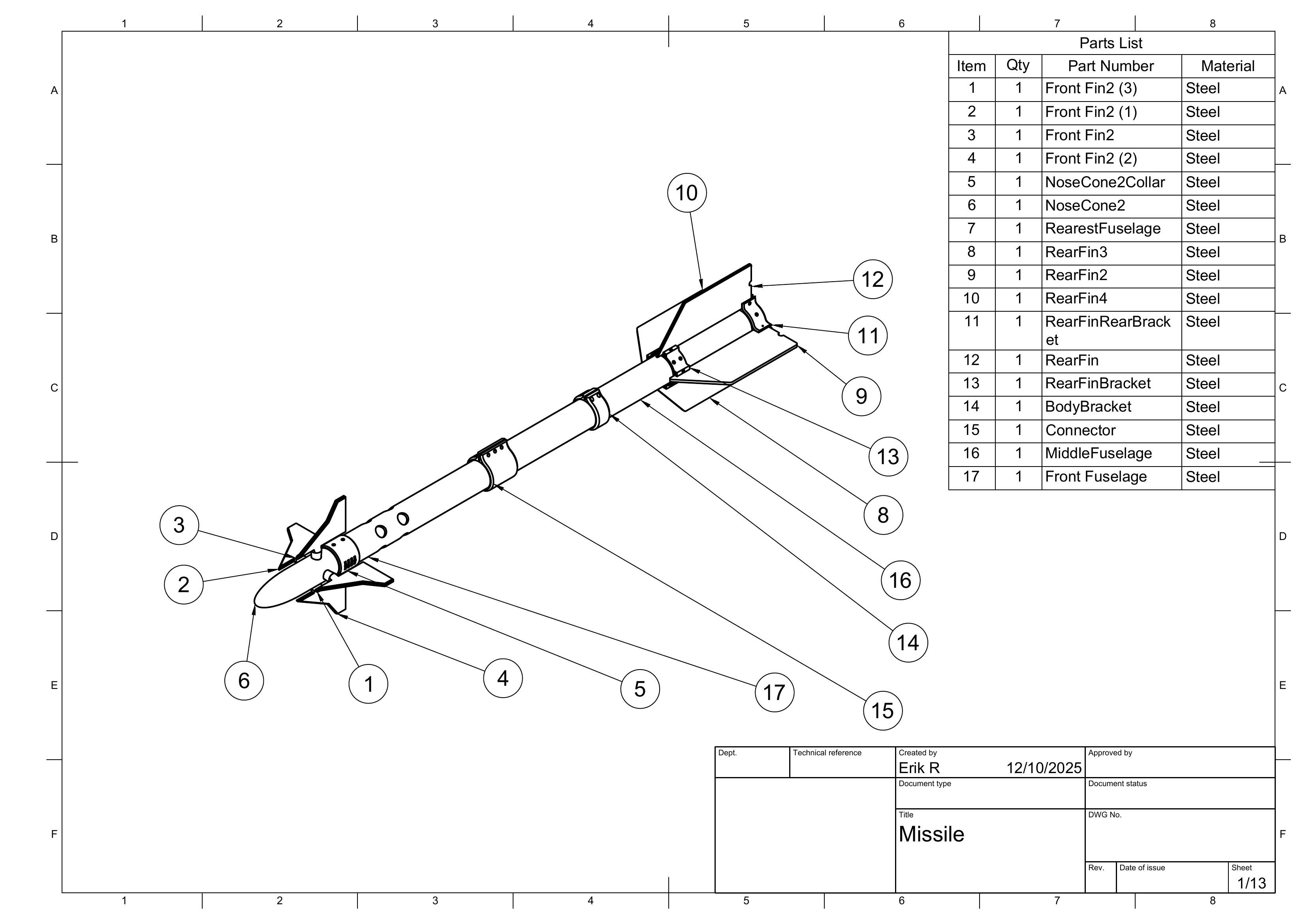

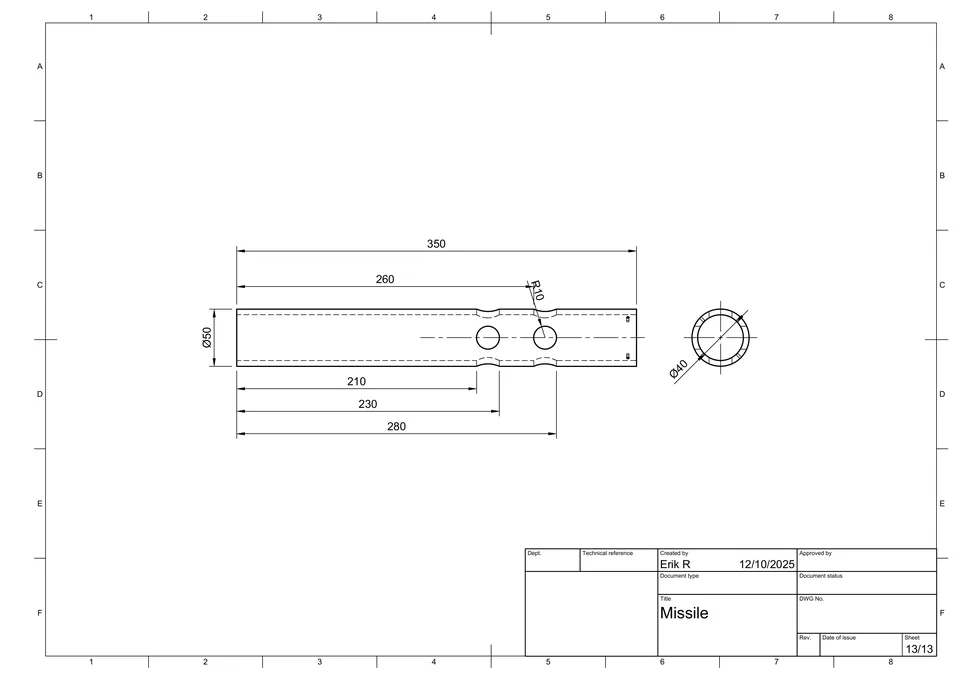

First sheet of the missile drawing set showing the assembly. — The drawing sheets are part of the project story, not just supporting documentation. They show the model as a set of decisions instead of a single finished render.

A tolerance exercise that stayed fun

I approached the model as a way to practice fit and assembly while still making something visually striking. It was a reminder that even a small project can be rewarding when the geometry, print setup, and assembly choices line up cleanly.

Missile drawing sheet 1 of 13. — Sheet 1 of 13

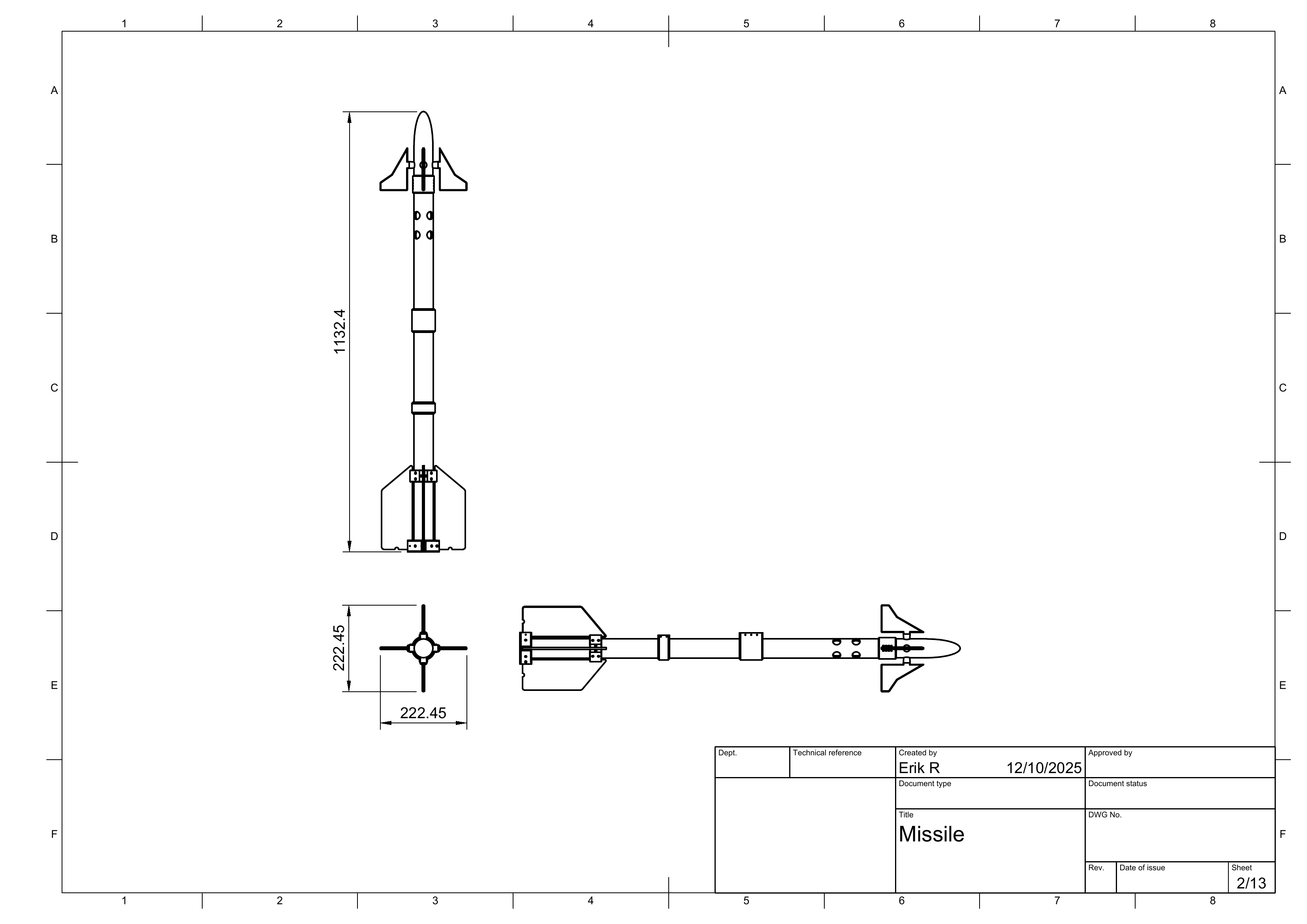

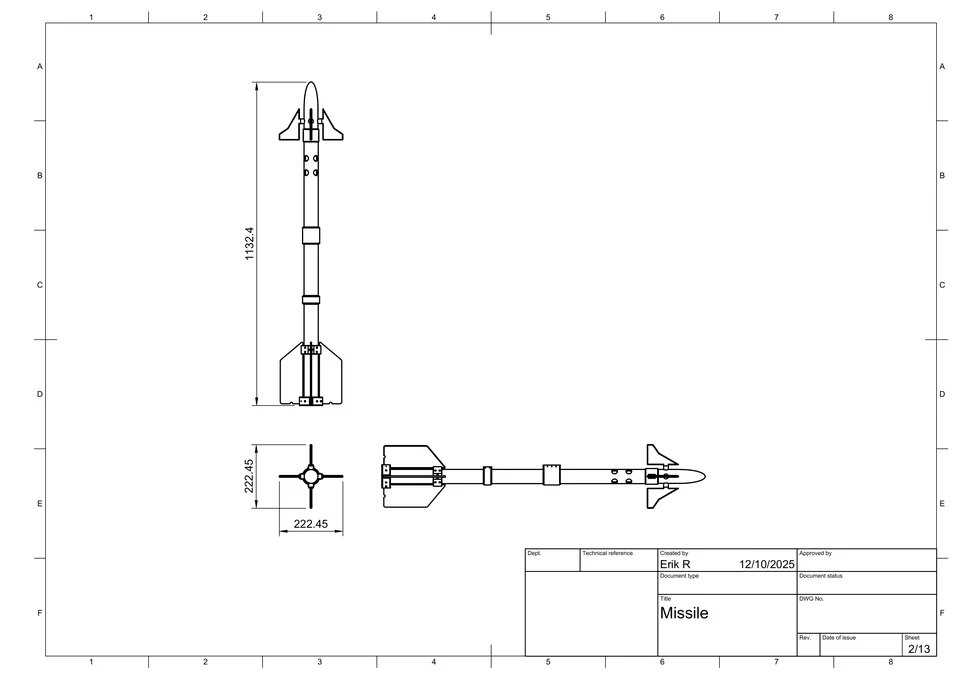

Missile drawing sheet 2 of 13. — Sheet 2 of 13

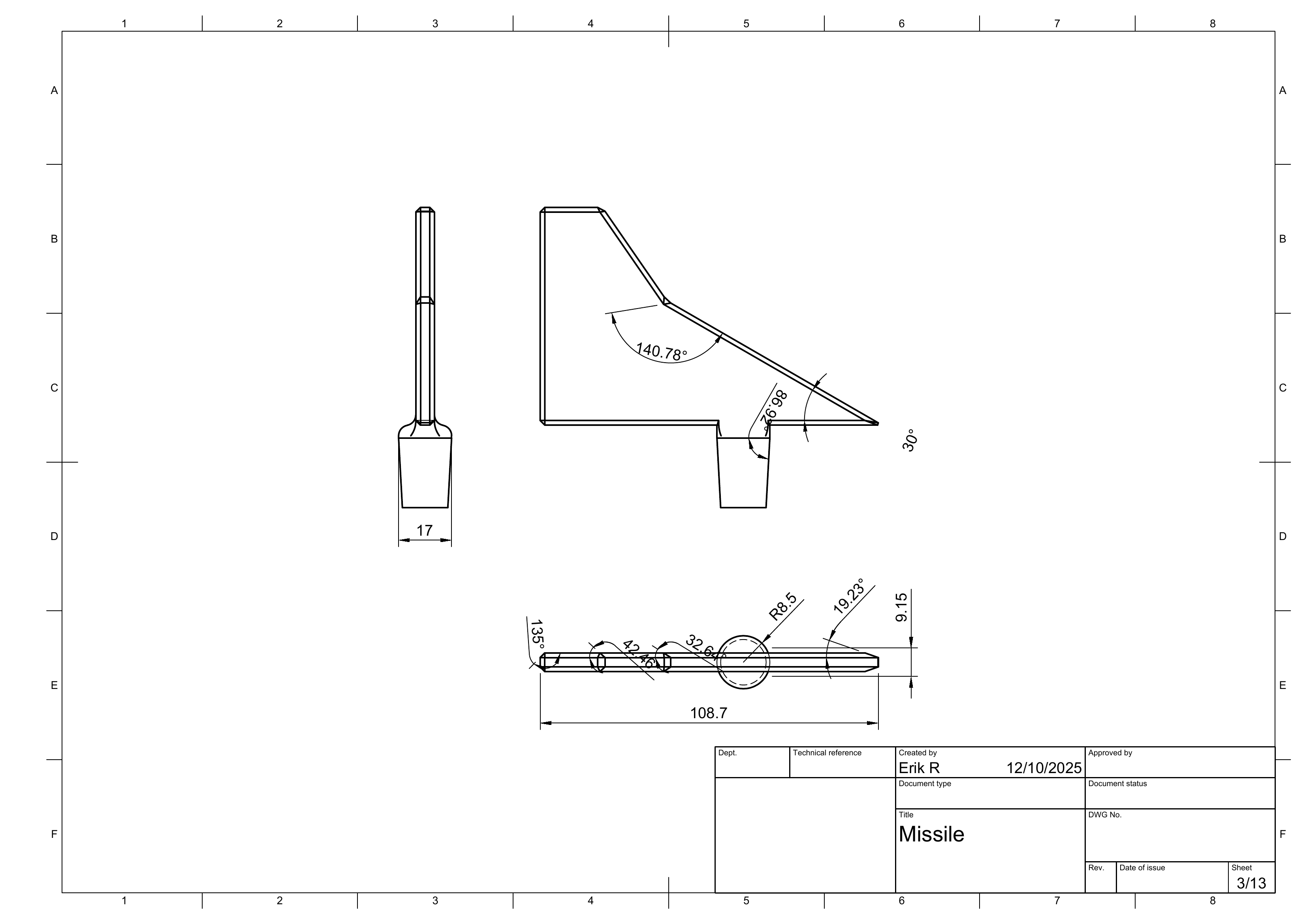

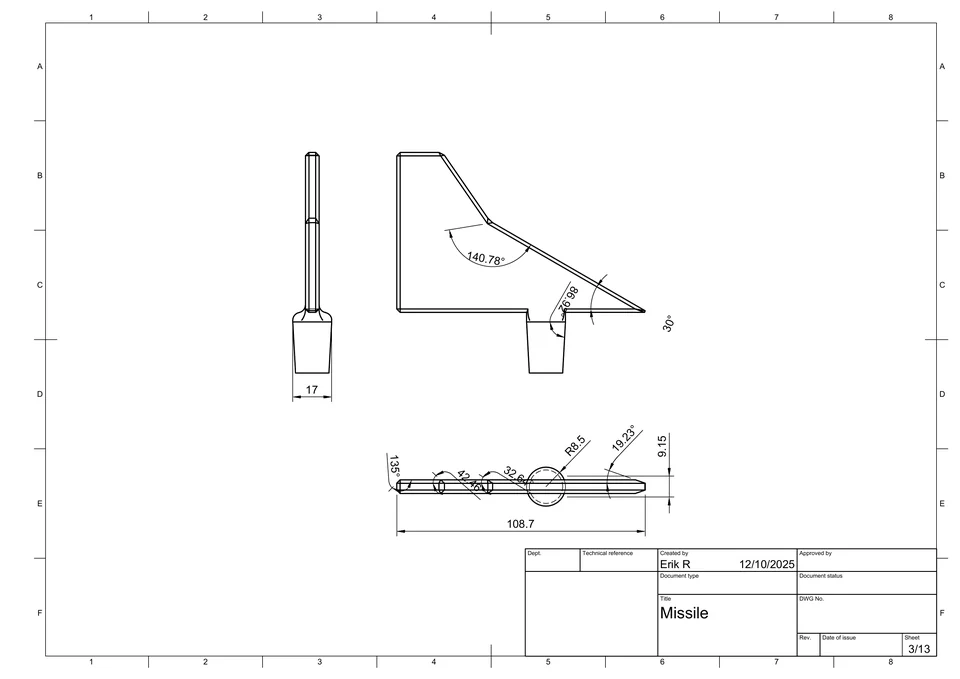

Missile drawing sheet 3 of 13. — Sheet 3 of 13

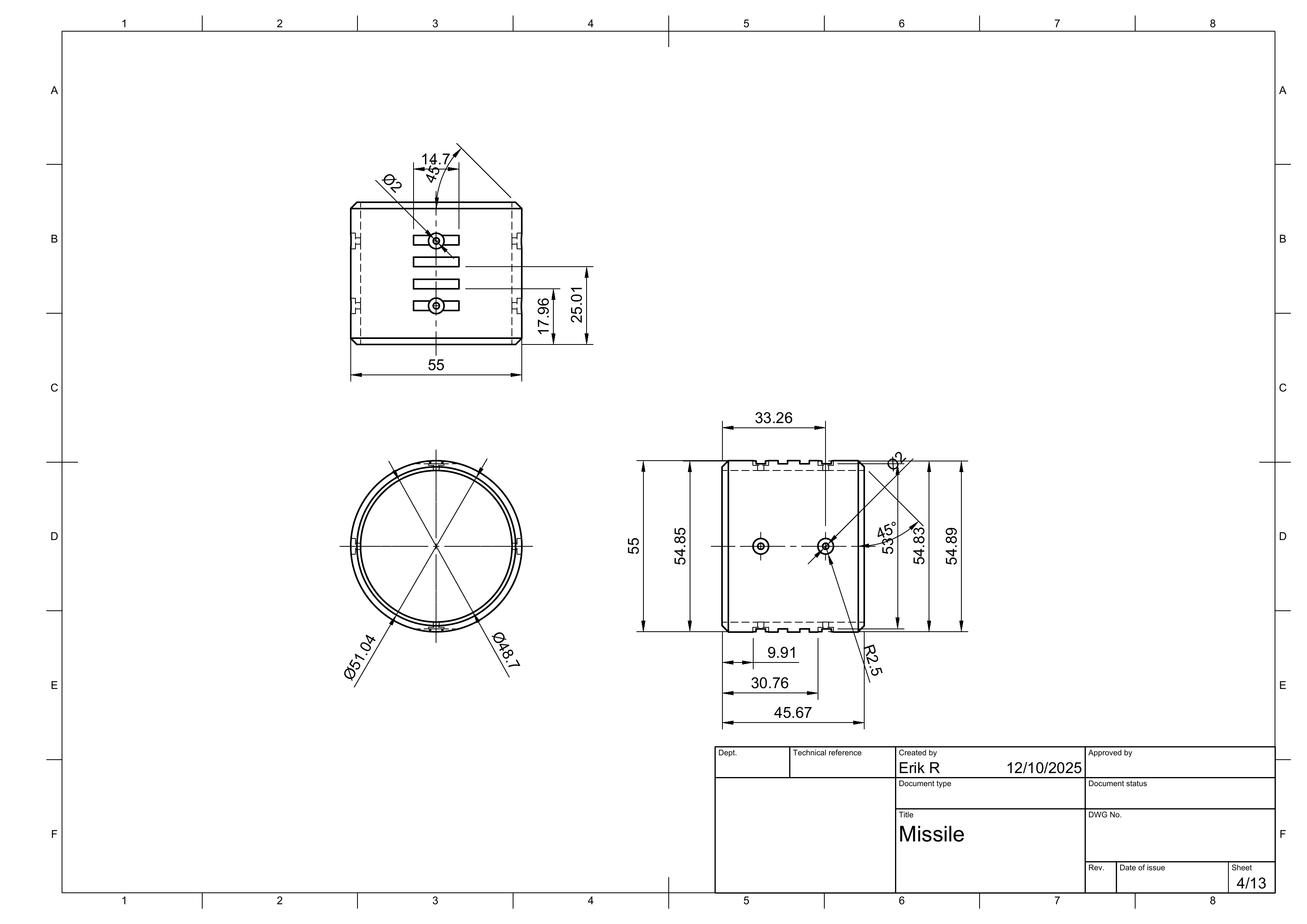

Missile drawing sheet 4 of 13. — Sheet 4 of 13

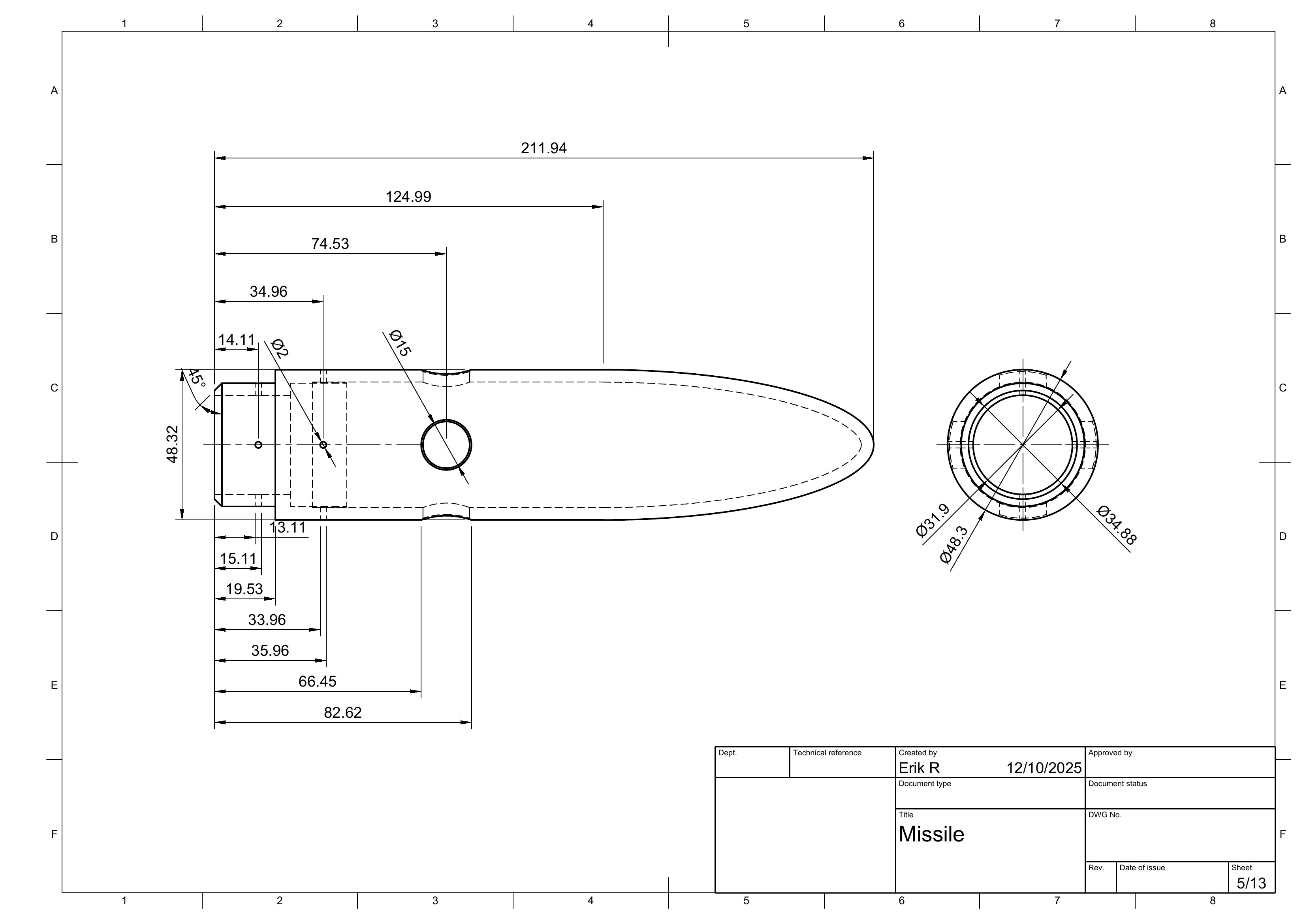

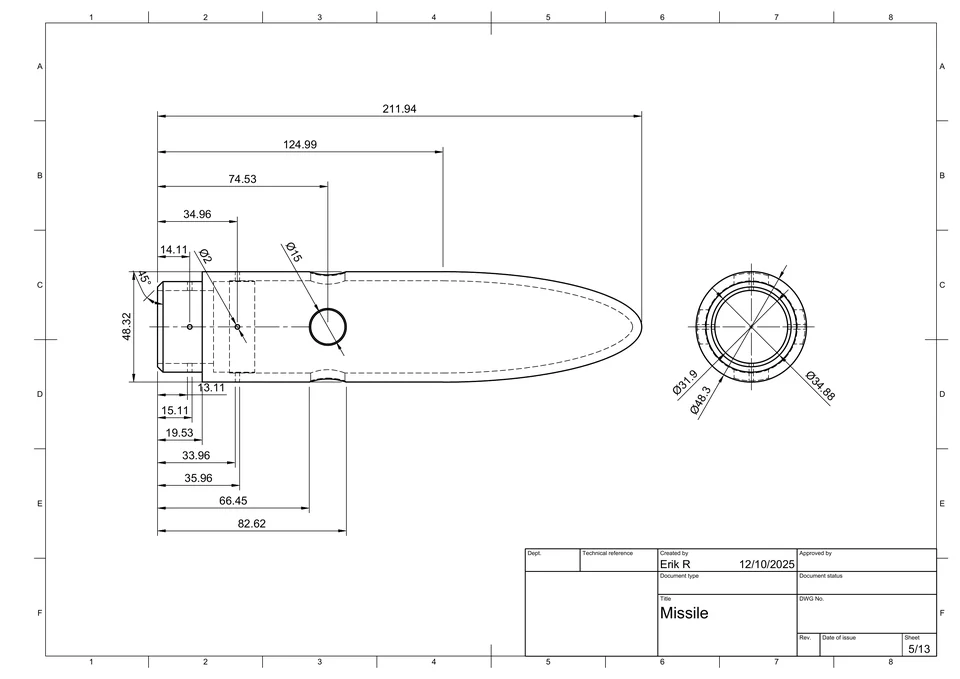

Missile drawing sheet 5 of 13. — Sheet 5 of 13

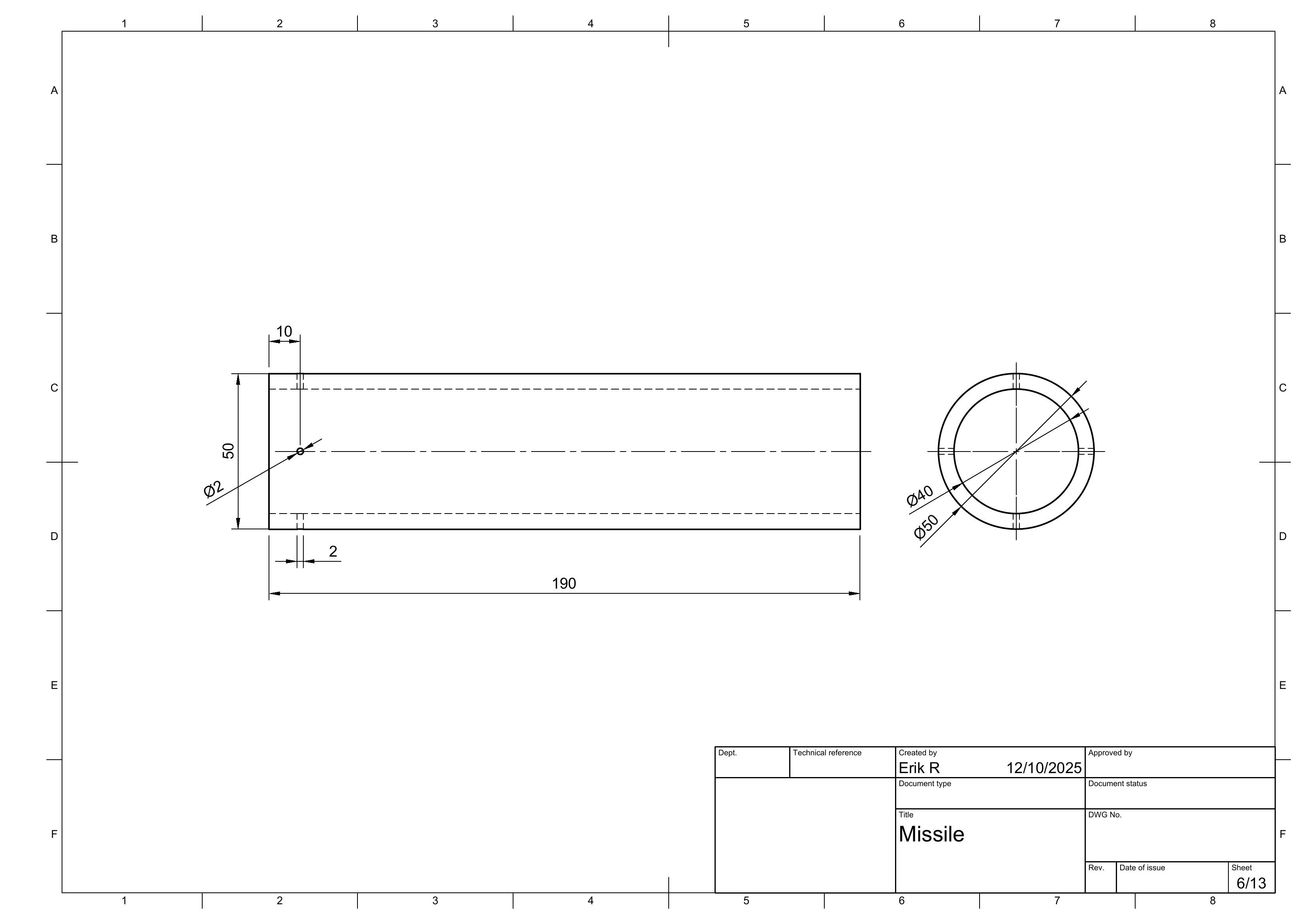

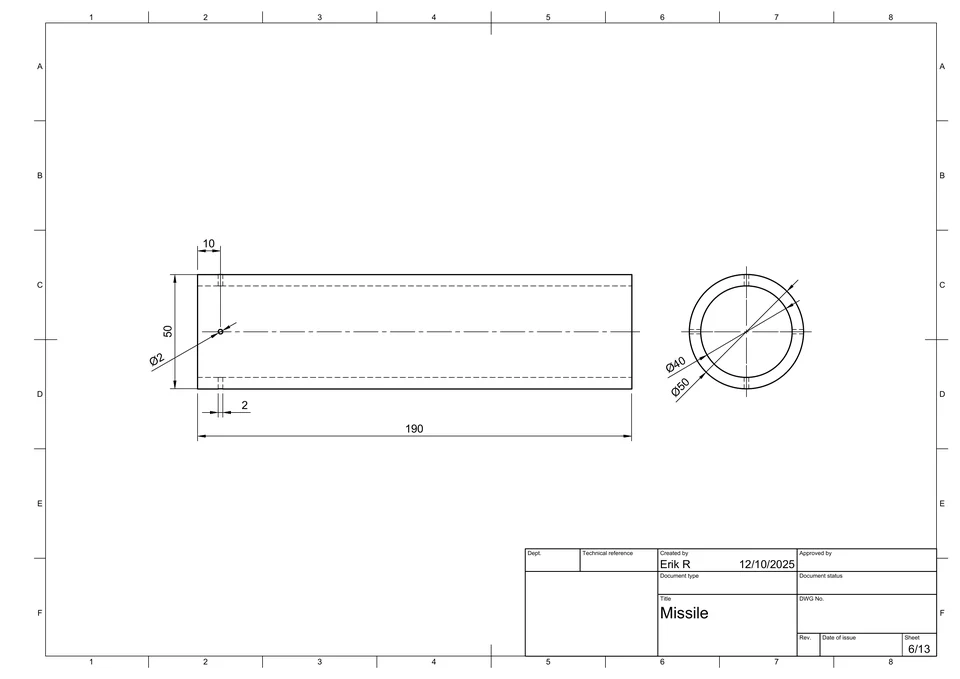

Missile drawing sheet 6 of 13. — Sheet 6 of 13

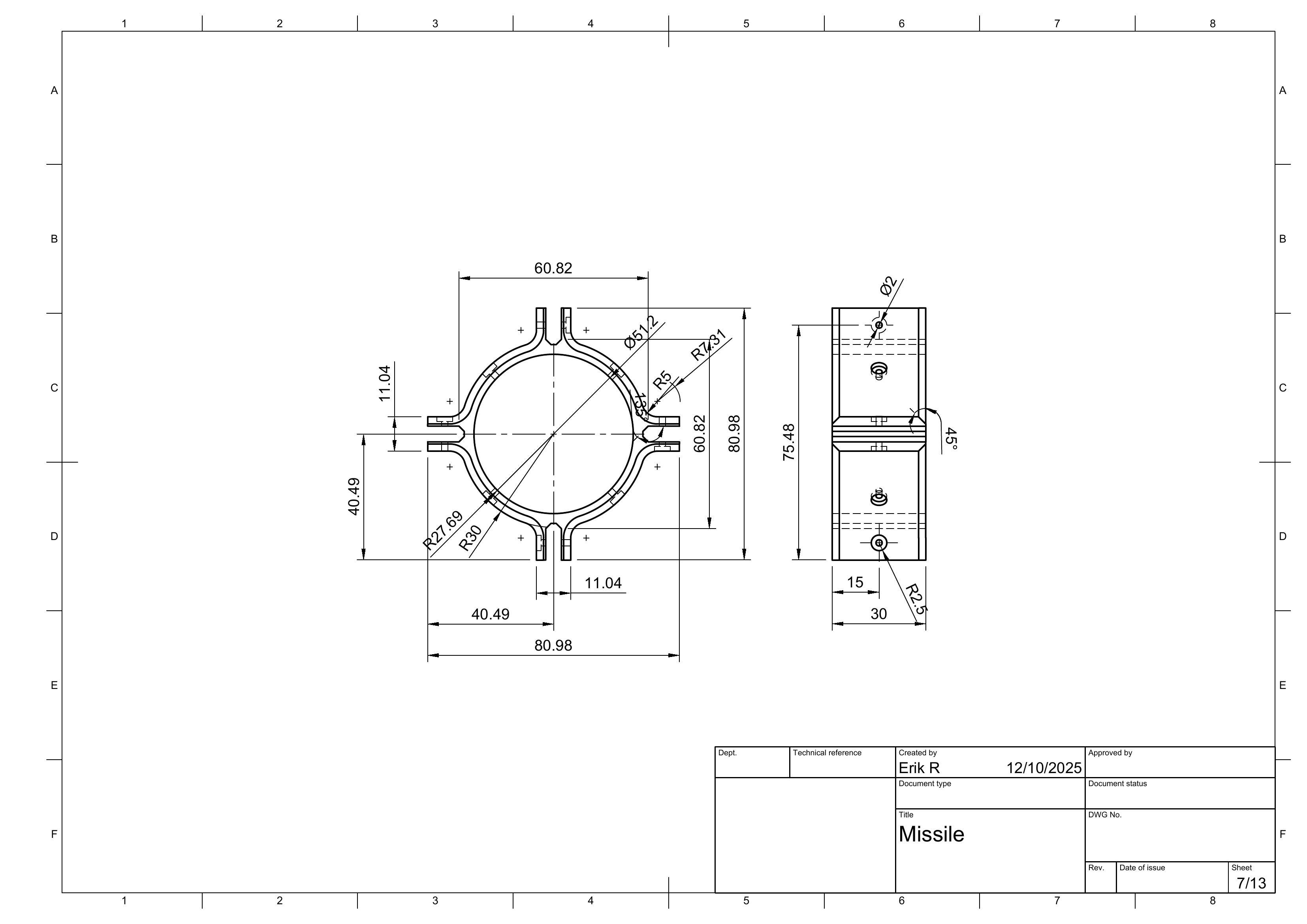

Missile drawing sheet 7 of 13. — Sheet 7 of 13

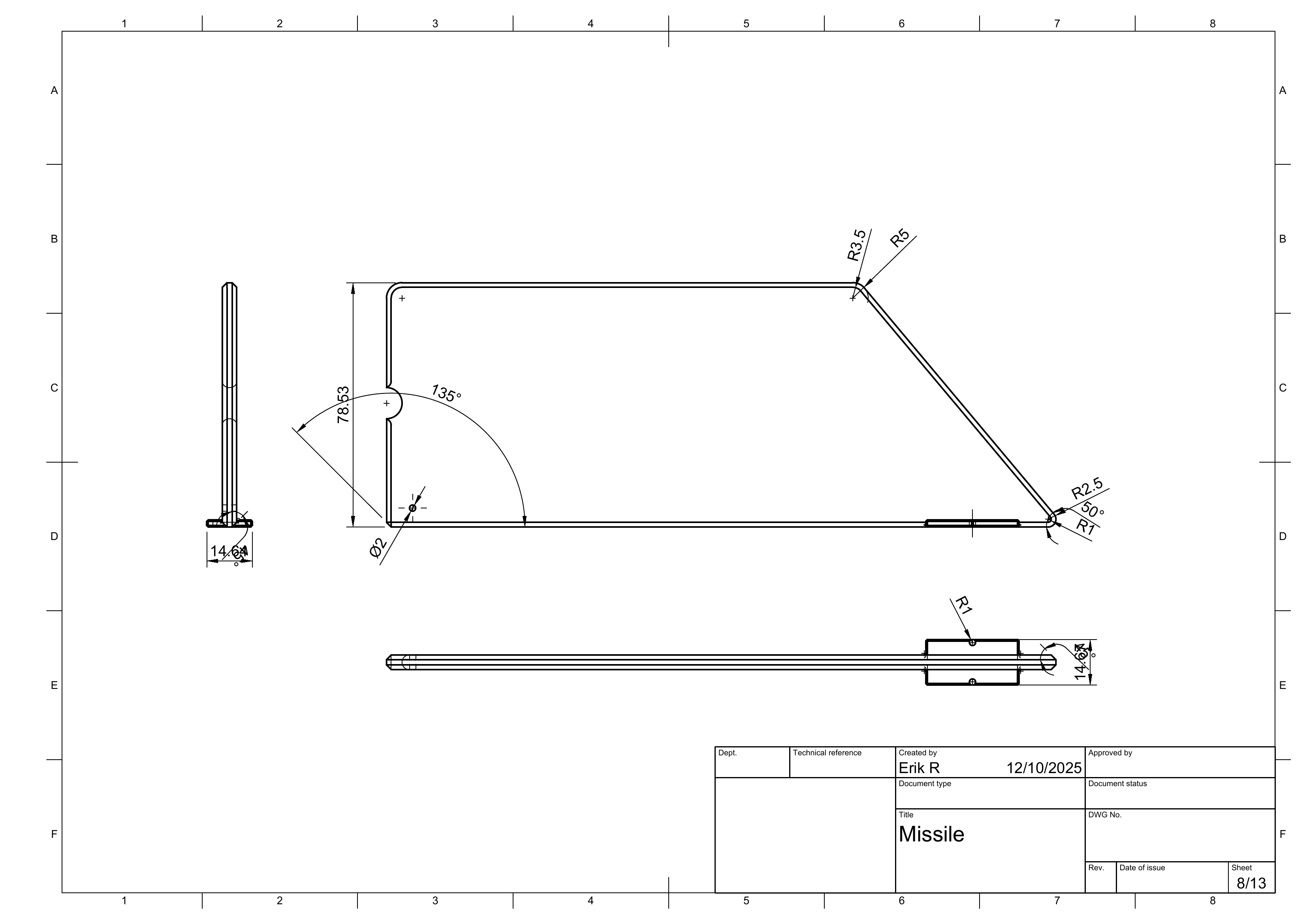

Missile drawing sheet 8 of 13. — Sheet 8 of 13

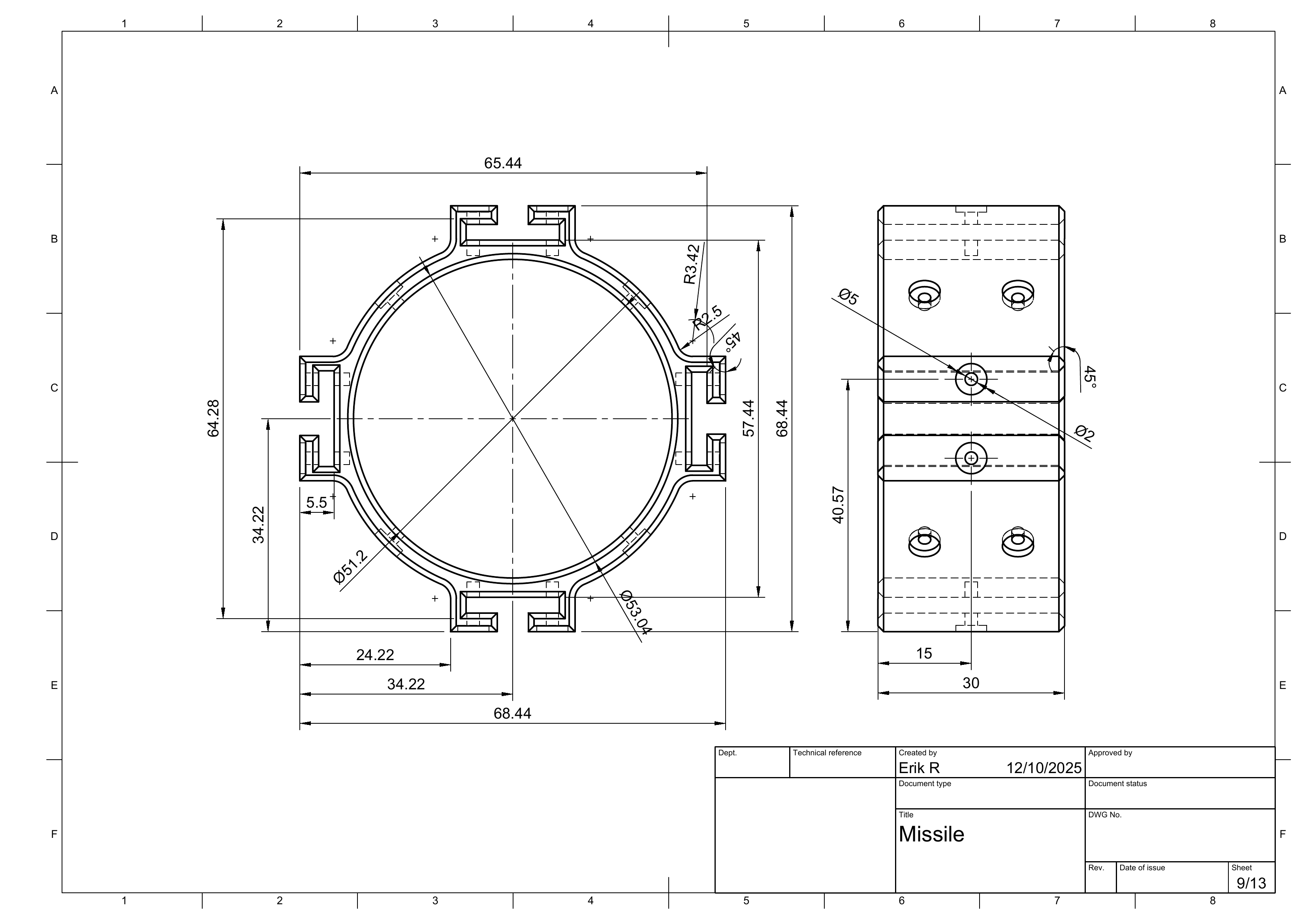

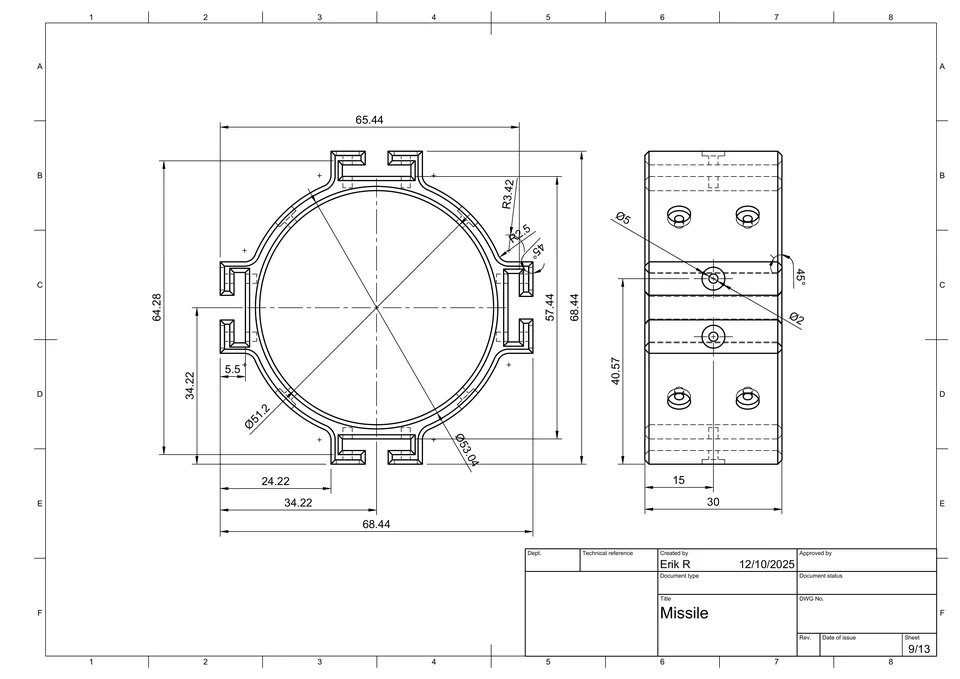

Missile drawing sheet 9 of 13. — Sheet 9 of 13

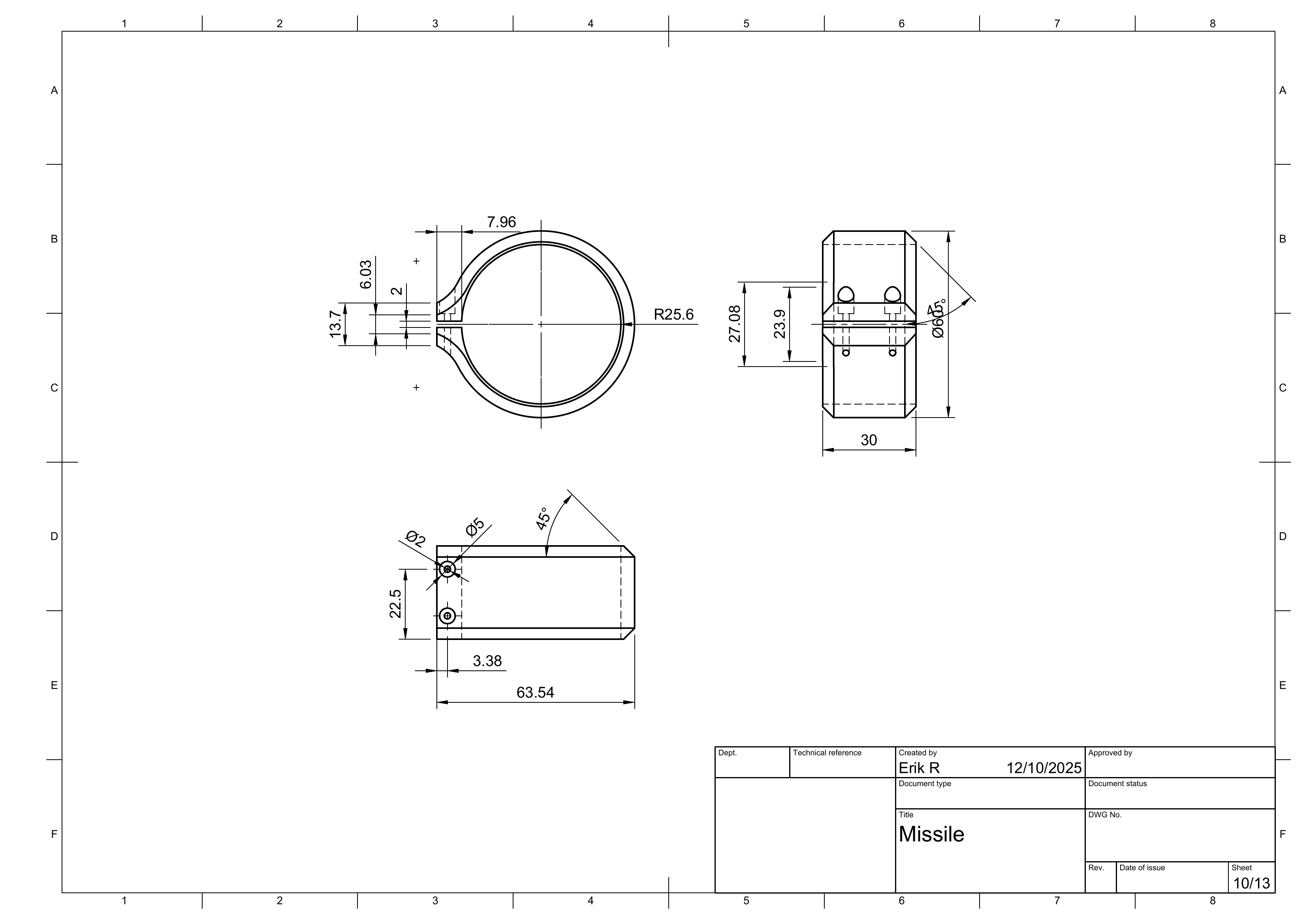

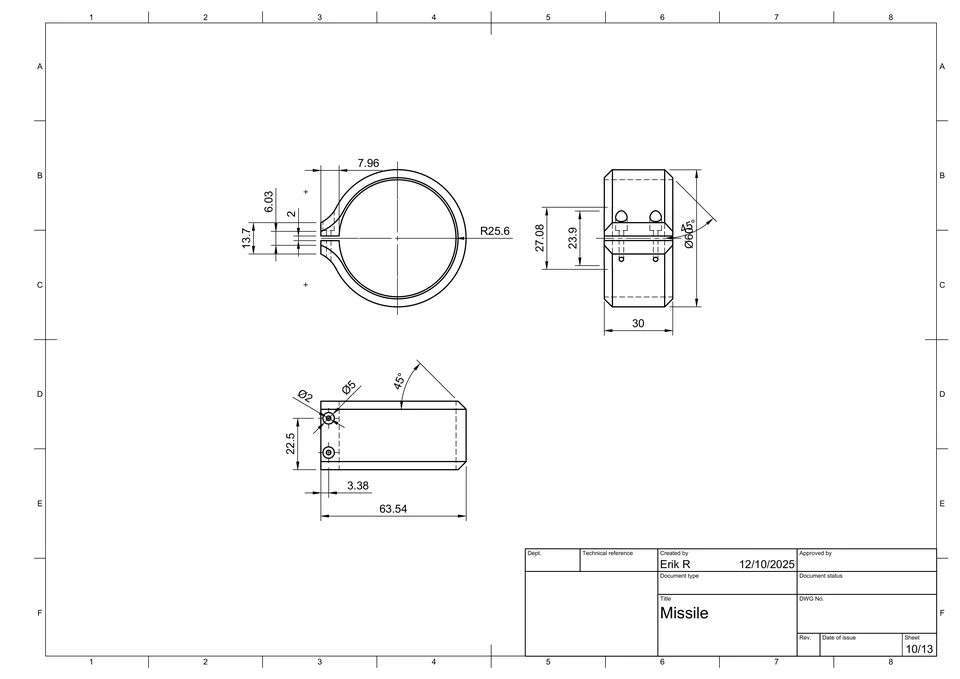

Missile drawing sheet 10 of 13. — Sheet 10 of 13

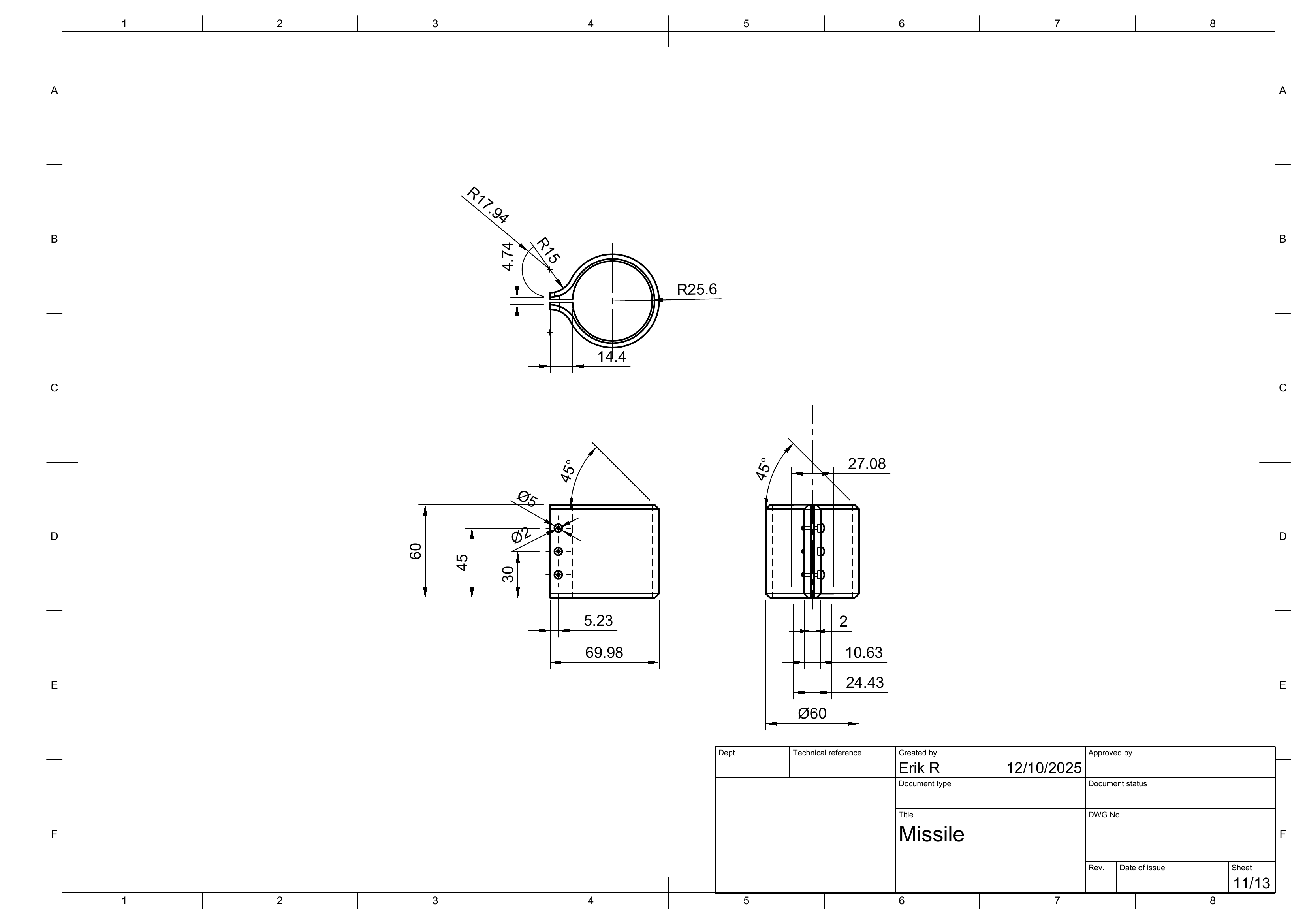

Missile drawing sheet 11 of 13. — Sheet 11 of 13

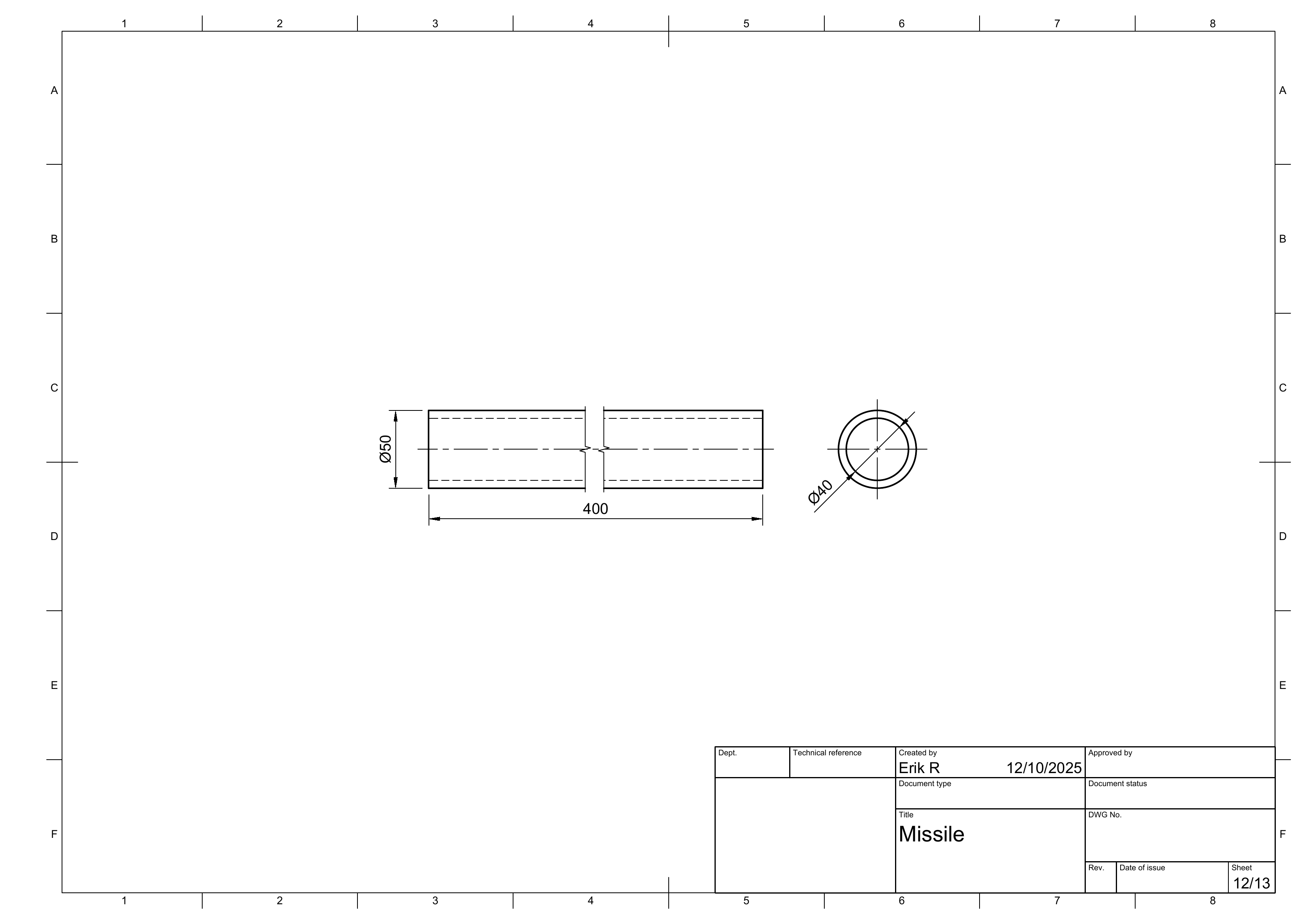

Missile drawing sheet 12 of 13. — Sheet 12 of 13

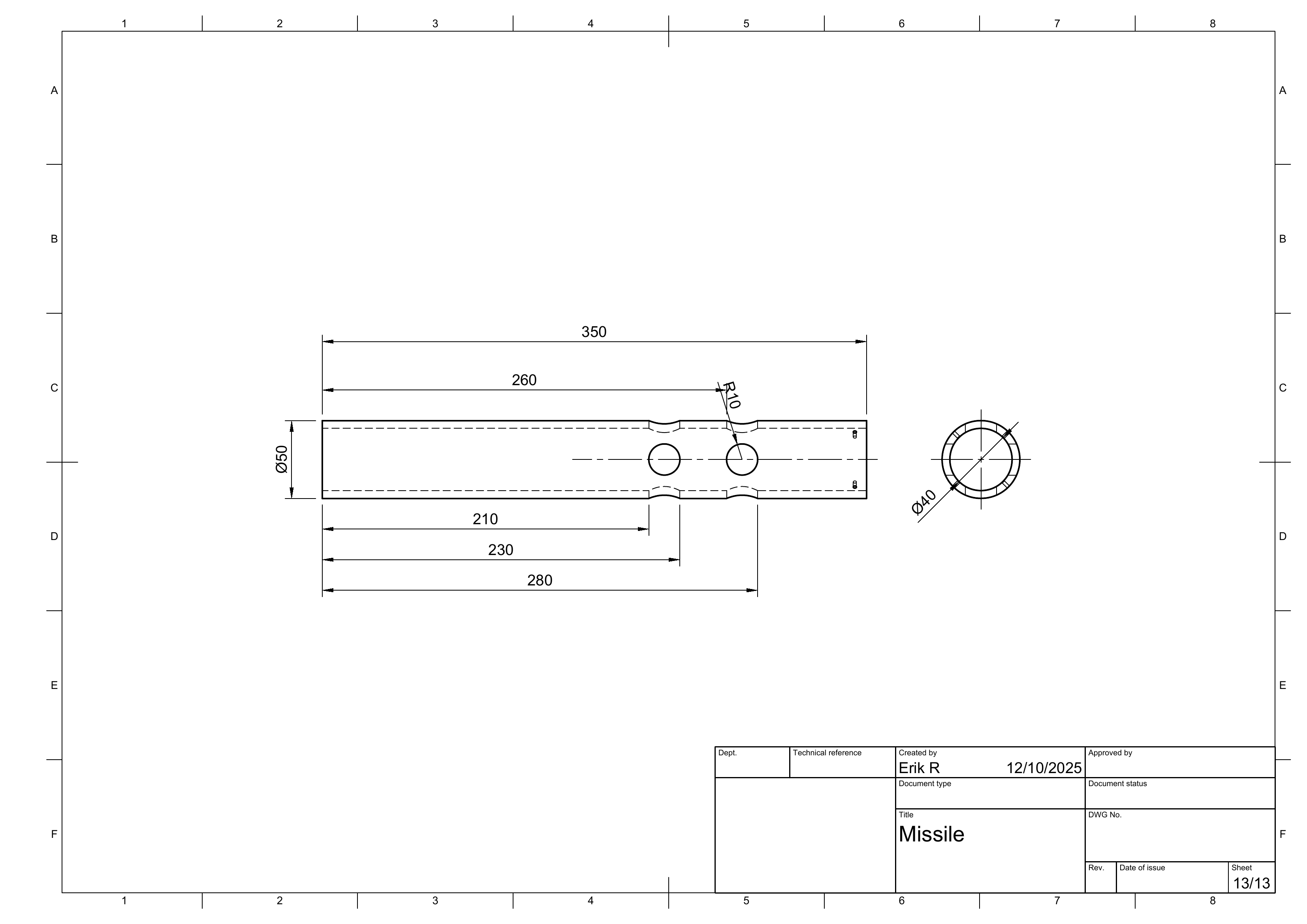

Missile drawing sheet 13 of 13. — Sheet 13 of 13
